PET Bottle Plastic Crusher High Output Plastic Grinding Machine for Beverage Bottle Recycling Plant

weight (t) : 0.8

voltage : 220V/380V(or customized)

machinery test report : Provided

Raw material : PP PE ABS PC PET

Place of Origin : Henan, China

power (kw) : 15

Machine Type : Plastic Shredder

key selling points : Competitive Price

Application : Recycle Waste Plastic

Name : Waste Palstic Crushing

core components : Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Other

MOQ : 1

warranty : 1 Year

video outgoing-inspection : Provided

Brand Name : CR

dimension(l*w*h) : 1200mm*1100mm*1650mm(47.24in*43.31in*64.96in)

Function : Plastic Cutter Grinder Crusher Shredder Machine

plastic type : PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS

Usage : Waste Raw Material Shredding

shaft design : Single

Keyword : Plastic Shreeder

After-sales Service Provided : Video Technical Support

Crushing material : General Plastic Materials

use : Waste Plastic Crusher

Price : $1,300-1,500

Contact Now

PET Bottle Plastic Crusher High Output Plastic Grinding Machine for Beverage Bottle Recycling Plant

■Plastic crusher machine

Plastic crushers are used to crush waste plastics and plastic scraps from factories. Plastic crushers are widely used in the regeneration of waste plastics and the recycling and reuse of factory scraps.

The plastic crusher is driven by an electric motor to rotate the moving knife disc at high speed. During the high-speed rotation of the moving knife, it forms a tendency of relative motion' with the fixed knife. The gap formed between the moving knife and the fixed knife creates a cut for plastic crushing and shearing, there by breaking down large pieces of plastic. The crushed plastic is filtered through a screen to determine the size of the plastic particles and then output.

■Advantage

The crusher is easy to operate, and the knife change is simple and quick. The tool rest is optimized in design. The claw-shaped knife can disperse the force received, increasing the shearing force of each knife piece. It is suitable for crushing thick materials, hard material blocks, material heads, etc., effectively enhancing the cutting force of the tool and reducing tool wear. It is equipped with an electric control safety design. The hopper adopts a double-layer structure and is filled with sound insulation materials inside, which makes the equipment have good safety and environmental protection, energy-saving and durable.

01/Motor

Pure copper motor, excellent electrical conductivity, good thermal conductivity, corrosiveness,suitable for a variety of working environments.

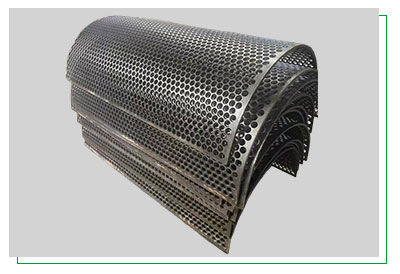

02/Sieve mesh

Screens of different specifications can be replaced according to different needs to achieve the required material size.

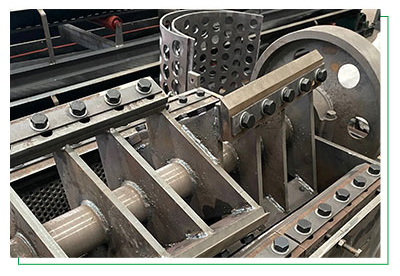

03/Rotor

The blades are made of alloy materials (such as 55SICR,SKD-11, etc.), which have stronger wear resistance and a longer service life.

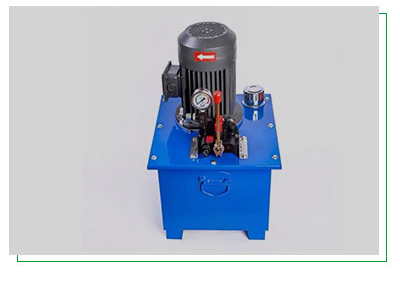

04/Hydraulic pump station

The hydraulic power can be quickly installed without the cumbersome disassembly process, which is convenient for maintenance, reduces manpower and downtime, and improves the operational efficiency of the equipment.

Lightweight (decorative blade)
Model	Power(kw)	Output(kg/h)	External dimensions(mm)	Machine weight(kg)
400	7.5	200-400	1100×800×1000	400
600	15	400-800	1200×1100×1650	800
800	30	800-1200	1700×1400×2000	1500
1000	45	1000-1500	1950×1900×2200	2000
1200	55	1500-2000	2200×2100×2200	2300
1500	75	2000-3400	2500×2300×2200	2800
1600	90	3000-6000	2600×2400×2300	3200

High-pressure heavy-duty plate cutter (herringbone blade)
Model	Power（kw）	Output （kg/h）	External dimensions（mm）	Machine weight（kg）
400	15	300-500	1100×800×1000	600
600	30	600-1000	1200×1100×1650	1200
800	45	900-1600	1700×1400×2000	2000
1000	55	1200-1800	1950×1900×2200	2500
1200	75	1600-2500	2200×2100×2200	3000
1500	90-110	3000-5000	2500×2300×2200	3500
1600	110-132	3800-6500	2600×2400×2300	4000

High-pressure heavy-duty tooth cutter (claw cutter)
Model	Power (kW)	Output (kg/h)	External dimensions（mm）	Machine weight（kg）
400	18.5	300-500	1100×800×1000	600
600	30	600-1000	1200×1100×1650	1200
800	37	900-1600	1700×1400×2000	2000
1000	45	1200-1800	1950×1900×2200	2500
1200	55	1600-2500	2200×2100×2200	3000
1500	55	3000-5000	2500×2300×2200	3500
1600	75	3800-6500	2600×2400×2300	4000

About Us

Zhengzhou Chenrui Machinery Equipment Co., Ltd. was established in 2007. Our factory is located in the High-End Equipment Manufacturing Park, Zhanjie Town, Gongyi City, Zhengzhou City, Henan Province. We design and manufacture industrial shredders, waste tire recycling equipment, waste metal recycling machinery, and waste home appliance crushing and sorting production lines, etc. Our products have obtained ISO and CE certifications and have been widely exported to over 30 countries, receiving high praise from customers. Over the years, we have continuously improved and researched, developing various new products that sell well both at home and abroad, earning a good reputation and corporate image. We are always committed to providing better quality and service. Welcome your inquiries!

Q: What is the maximum processing capacity of this crusher? Can it operate continuously?

‌A‌: Our industrial-grade shredder has a continuous processing capacity of 6500 kg/h, utilizing reinforced steel blades and a heavy-duty motor. It maintains stable performance even when processing high-density materials such as PVC pipes and ABS sheets, making it ideal for continuous operation in recycling plants.

Q: Can it process mixed plastics? For example, waste materials containing a mixture of PP, PE, and ABS.

A: Absolutely! Our shredder is specifically designed for mixed plastics, and its alloy steel blades efficiently separate and shred the materials, making it an ideal choice for recycling centers dealing with complex waste streams.

Q: Is it complicated to operate? Does it require professional training?

A: The design is very user-friendly, equipped with an intuitive control panel. We provide free online video tutorials and operating manuals, and most customers find it easy to get started.

Q: Is maintenance difficult? How often do the blades need to be replaced?

A: Maintenance is very simple; just perform regular inspections. The blade life is typically 6-12 months (depending on usage frequency and materials), and as a consumable part, we will provide replacement blades at a discounted price.

Q: Do your machines have CE certification? Do they comply with EU environmental standards?

A: Yes, our shredders are CE certified and RoHS compliant, equipped with a dust suppression system, and the noise level is kept below 75 decibels, fully meeting EU environmental requirements.

Q: Can the product be customized to my needs? For example, can the production capacity or color be adjusted?

A: Absolutely! We support OEM customization and can adjust the product according to your production capacity requirements, voltage specifications, or color preferences.

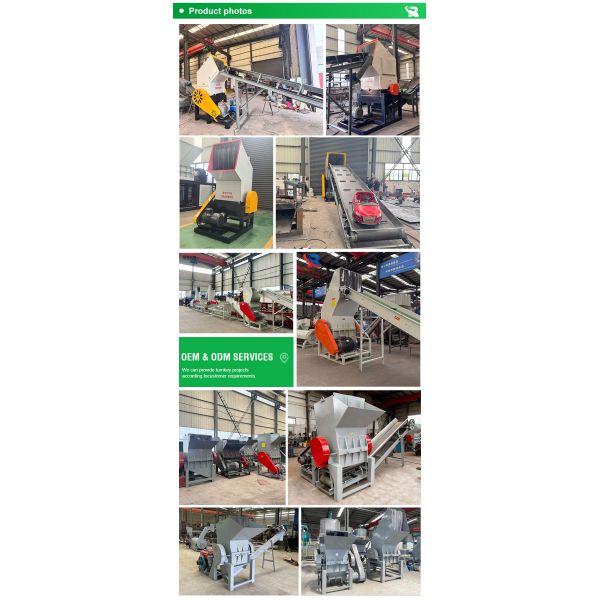

PET Bottle Plastic Crusher High Output Plastic Grinding Machine for Beverage Bottle Recycling Plant Images
